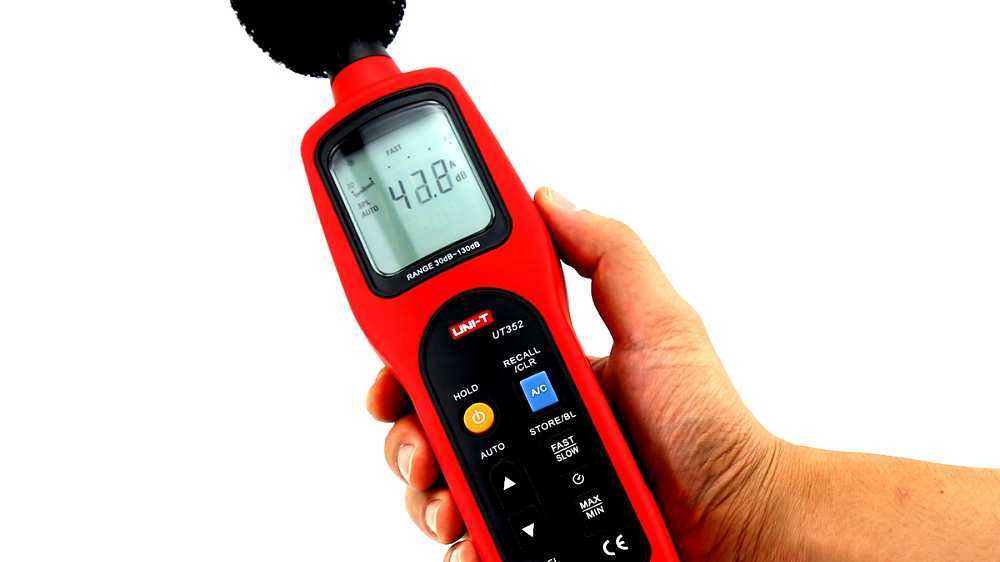

A sound level meter is used for acoustic (sound that travels through air) measurements. It is commonly a hand-held instrument with a microphone. The diaphragm of the microphone responds to changes in air pressure caused by sound waves. That is why the instrument is sometimes referred to as a Sound Pressure Level (SPL) Meter. This movement of the diaphragm, i.e. the sound pressure deviation (pascal Pa), is converted into an electrical signal (volts V).
A microphone is distinguishable by the voltage value produced when a known, constant sound pressure is applied. This is known as the microphone sensitivity. The instrument needs to know the sensitivity of the particular microphone being used. Using this information, the instrument is able to accurately convert the electrical signal back to a sound pressure, and display the resulting sound pressure level (decibels dB SPL).
Sound level meters are commonly used in noise pollution studies for the quantification of different kinds of noise, especially for industrial, environmental and aircraft noise. The current international standard that specifies sound level meter functionality and performances is the IEC 61672-1:2013. However, the reading from a sound level meter does not correlate well to human-perceived loudness, which is better measured by a loudness meter. Specific loudness is a compressive nonlinearity that depends on level and also frequency, which can be calculated in a number of different ways.
Video Sound level meter
Classification
Types
The IEC 61672-1 specifies "three kinds of sound measuring instruments". They are the "conventional" sound level meter, the integrating-averaging sound level meter, and the integrating sound level meter.
The standard sound level meter can be called an exponentially averaging sound level meter as the AC signal from the microphone is converted to DC by a root-mean-square (RMS) circuit and thus it must have a time constant of integration; today referred to as the time-weighting. Three of these time-weightings have been internationally standardized, 'S' (1 s) originally called Slow, 'F' (125 ms) originally called Fast and 'I' (35 ms) originally called Impulse. Their names were changed in the 1980s to be the same in any language. I-time-weighting is no longer in the body of the standard because it has little real correlation with the impulsive character of noise events.
The output of the RMS circuit is linear in voltage and is passed through a logarithmic circuit to give a readout linear in decibels (dB). This is 20 times the base 10 logarithm of the ratio of a given root-mean-square sound pressure to the reference sound pressure. Root-mean-square sound pressure being obtained with a standard frequency weighting and standard time weighting. The reference pressure is set by International agreement to be 20 micropascals for airborne sound. It follows that the decibel is, in a sense, not a unit, it is simply a dimensionless ratio; in this case the ratio of two pressures.
An exponentially averaging sound level meter, which gives a snapshot of the current noise level, is of limited use for hearing damage risk measurements; an integrating or integrating-averaging meter is usually mandated. An integrating meter simply integrates--or in other words 'sums'--the frequency-weighted noise to give sound exposure and the metric used is pressure squared times time, often Pa²·s, but Pa²·h is also used. However, because the unit of sound was historically described in decibels, the exposure is most often described in terms of sound exposure level (SEL), the logarithmic conversion of sound exposure into decibels.
Note: in acoustics all 'levels' are in decibels
Personal noise dosimeter
A common variant of the sound level meter is a noise dosemeter (dosimeter in American English). However, this is now formally known as a personal sound exposure meter (PSEM) and has its own International standard IEC 61252:1993.
A noise dosimeter (American) or noise dosemeter (British) is a specialized sound level meter intended specifically to measure the noise exposure of a person integrated over a period of time; usually to comply with Health and Safety regulations such as the Occupational Safety and Health (OSHA) 29 CFR 1910.95 Occupational Noise Exposure Standard or EU Directive 2003/10/EC.
This is normally intended to be a body-worn instrument and thus has a relaxed technical requirement, as a body-worn instrument--because of the presence of the body--has a poorer overall acoustic performance. A PSEM gives a read-out based on sound exposure, usually Pa²·h, and the older 'classic' dosimeters giving the metric of 'percentage dose' are no longer used in most countries. The problem with "%dose" is that it relates to the political situation and thus any device can become obsolete if the "100%" value is changed by local laws.
Traditionally, noise dosemeters were relatively large devices with a microphone mounted near the ear and having a cable going to the instrument body, itself usually belt worn. These devices had several issues, mainly the reliability of the cable and the disturbance to the user's normal work mode, caused by the presence of the cable. In 1997 following a UK research grant an EU patent was issued for the first of a range of devices that were so small that they resembled a radiation badge and no cable was needed as the whole unit could be fitted near the ear. Today these devices measure not only simple noise dose, but some even have four separate dosemeters, each with many of the functions of a full-sized sound level meter, including in the latest models full octave band analysis.
Classes
IEC standards divide sound level meters into two "classes". Sound level meters of the two classes have the same functionality, but different tolerances for error. Class 1 instruments have a wider frequency range and a tighter tolerance than a lower cost, Class 2 unit. This applies to both the sound level meter itself as well as the associated calibrator. Most national standards permit the use of "at least a Class 2 instrument". For many measurements, it is not necessary to use a Class 1 unit; these are best employed for research and law enforcement.
Similarly, the American National Standards Institute (ANSI) specifies sound level meters as three different Types 0, 1 and 2. These are described, as follows, in the Occupational Safety and Health OSHA Technical Manual TED01-00-015, Chapter 5, OSHA Noise and Hearing Conservation, Appendix III:A, "These ANSI standards set performance and accuracy tolerances according to three levels of precision: Types 0, 1, and 2. Type 0 is used in laboratories, Type 1 is used for precision measurements in the field, and Type 2 is used for general-purpose measurements. For compliance purposes, readings with an ANSI Type 2 sound level meter and dosimeter are considered to have an accuracy of ±2 dBA, while a Type 1 instrument has an accuracy of ±1 dBA. A Type 2 meter is the minimum requirement by OSHA for noise measurements and is usually sufficient for general purpose noise surveys. The Type 1 meter is preferred for the design of cost-effective noise controls. For unusual measurement situations, refer to the manufacturer's instructions and appropriate ANSI standards for guidance in interpreting instrument accuracy."
Maps Sound level meter
Measurements
Frequency weighting
'Pattern Approved' sound level meters offer noise measurements with A, C and Z frequency weighting. So what is the difference?
If a sound is produced with equal sound pressure across the whole frequency spectrum, it could be represented in the graph alongside by the Z-Weighting line. What humans are physically capable of hearing is represented by the A-Weighting curve. Acoustic sound contains more lower and higher frequencies than humans perceive. The C-Weighting curve represents what humans hear when the sound is turned up; we become more sensitive to the lower frequencies. The A and C weightings are thus most meaningful for describing the frequency response of the human ear toward real world sounds.
The IEC 61672-1:2013 mandates the inclusion of an A-frequency-weighting filter in all sound level meters, and also describes C and Z (zero) frequency weightings. The older B and D frequency weightings are now obsolete and are no longer described in the standard.
In almost all countries, the use of A-frequency-weighting is mandated to be used for the protection of workers against noise-induced hearing loss. The A-frequency curve was based on the historical equal-loudness contours and while arguably A-frequency-weighting is no longer the ideal frequency weighting on purely scientific grounds, it is nonetheless the legally required standard for almost all such measurements and has the huge practical advantage that old data can be compared with new measurements. It is for these reasons that A-frequency-weighting is the only weighting mandated by the international standard, the frequency weightings 'C' and 'Z' being optional fitments.
Originally, the A-frequency-weighting was only meant for quiet sounds in the region of 40 dB sound pressure level (SPL), but is now mandated for all levels. C-frequency weighting is however still used in the measurement of the peak value of a noise in some legislation, but B-frequency weighting - a halfway house between 'A' and 'C' has almost no practical use. D-frequency-weighting was designed for use in measuring aircraft noise when non-bypass jets were being measured and after the demise of Concord, these are all military types. For all civil aircraft noise measurements, A-frequency-weighting is used as is mandated by the ISO and ICAO standards.
LAT or Leq: Equivalent continuous sound level
Sound exposure level--in decibels--is not much used in industrial noise measurement. Instead, the time-averaged value is used. This is the time average sound level or as it is usually called the 'equivalent continuous sound level' has the formal symbol LAT as described in paragraph 3,9 "Definitions" of IEC 61672-1 where many correct formal symbols and their common abbreviations are given. These mainly follow the formal ISO acoustic definitions. However, for mainly historical reasons, LAT is commonly referred to as Leq.
Formally, LAT is 10 times the base 10 logarithm of the ratio of a root-mean-square A-weighted sound pressure during a stated time interval to the reference sound pressure and there is no time constant involved. To measure LAT an integrating-averaging meter is needed; this in concept takes the sound exposure, divides it by time and then takes the logarithm of the result.
Short Leq
An important variant of overall LAT is "short Leq" where very short Leq values are taken in succession, say at 1/8 second intervals, each being stored in a digital memory. These data elements can either be transmitted to another unit or be recovered from the memory and re-constituted into almost any conventional metric long after the data has been acquired. This can be done using either dedicated programs or standard spreadsheets. Short Leq has the advantage that as regulations change, old data can be re-processed to check if a new regulation is met. It also permits data to be converted from one metric to another in some cases. Today almost all fixed airport noise monitoring systems, which are in concept just complex sound level meters, use short Leq as their metric, as a steady stream of the digital one second Leq values can be transmitted via telephone lines or the Internet to a central display and processing unit. Short Leq is a feature of most commercial integrating sound level meters--although some manufacturers give it many different names.
Short Leq is a very valuable method for acoustic data storage; initially, a concept of the French Government's Laboratoire National d'Essais (ref 1), it has now become the most common method of storing and displaying a true time history of the noise in professional commercial sound level meters. The alternative method, which is to generate a time history by storing and displaying samples of the exponential sound level, displays too many artifacts of the sound level meter to be as valuable and such sampled data cannot be readily combined to form an overall set of data.
Until 2003 there were separate standards for exponential and linear integrating sound level meters, (IEC 60651 and IEC 60804--both now withdrawn), but since then the combined standard IEC 61672 has described both types of meter. For short Leq to be valuable the manufacturer must ensure that each separate Leq element fully complies with IEC 61672.
LCpk: peak sound pressure level
Most national regulations also call for the absolute peak value to be measured to protect workers hearing against sudden large pressure peaks, using either 'C' or 'Z' frequency weighting. 'Peak sound pressure level' should not be confused with 'MAX sound pressure level'. 'Max sound pressure level' is simply the highest RMS reading a conventional sound level meter gives over a stated period for a given time-weighting (S, F, or I) and can be many decibels less than the peak value. In the European Union, the maximum permitted value of the peak sound level is 140 dB(C) and this equates to 200 Pa pressure. The symbol for the A-frequency and S-time weighted maximum sound level is LASmax. For the C-frequency weighted peak it is LCpk or LC,peak.
Standardization
Sound level meters
- IEC61672 Ed. 2.0 (2013)
- IEC60651 Ed 1.2 (2001) plus Amendment 1 (1993-02) and Amendment 2 (2000-10)
- IEC60804 (2000-10)
- ANSI S1.4-1983 (R2006) plus Amendment S1.4A-1985 (R2006)
- ANSI S1.43-1997 (R2007)
- DIN 45657
Octave filters
- IEC61260 Ed. 1.0 (2014) Electroacoustics - Octave-band and fractional-octave-band filters
- ANSI S1.11-2004 (R2009)
Personal noise dosimeters
- IEC61252 Ed. 1.1 (2002-03)
- ANSI S1.25-1991(R2007)
Measurement microphones
- IEC 61094 : 2000
Room acoustics
- ISO 3382-1:2009 Measurement of Room Acoustic Parameters Part 1: Performance Rooms
- ISO 3382-2:2008 Measurement of Room Acoustic Parameters Part 2: Reverberation Time in Ordinary Rooms
- ASTM E2235 (2004) Standard Test Method for Determination of Decay Rates for Use in Sound Insulation Test Methods.
Equipment safety
IEC61010-1 Ed. 2.0 (2001-02)
International standards
The following International standards define sound level meters, PSEM and associated devices. Most countries' national standards follow these very closely, the exception being the USA. In many cases the equivalent European standard, agreed by the EU, is designated for example EN 61672 and the UK national standard then becomes BS. EN 61672.
- IEC 61672 : 2013 "Electroacoustics - sound level meters"
- IEC 61252 : 1993 "Electroacoustics - specifications for personal sound exposure meters"
- IEC 60942 : 2003 "Electroacoustics - sound calibrators"
- IEC 62585 : 2012 "Electroacoustics - Methods to determine corrections to obtain the free-field response of a sound level meter"
These International Standards were prepared by IEC technical committee 29:Electroacoustics, in cooperation with the International Organization of Legal Metrology (OIML).
Until 2003 there were separate standards for exponential and linear integrating sound level meters, but since then IEC 61672 has described both types. The classic exponential meter was originally described in IEC 123 for 'industrial' meters followed by IEC 179 for 'precision' meters. Both of these were replaced by IEC 651, later renamed IEC 60651, while the linear integrating meters were initially described by IEC 804, later renamed IEC 60804. Both IEC 60651 and 60804 included four accuracy classes, called "types". In IEC 61672 these were reduced to just two accuracy classes 1 and 2. New in the standard IEC 61672 is a minimum 60 dB linear span requirement and Z-frequency-weighting, with a general tightening of limit tolerances, as well as the inclusion of maximum allowable measurement uncertainties for each described periodic test. The periodic testing part of the standard (IEC61672.3) also requires that manufacturers provide the testing laboratory with correction factors to allow laboratory electrical and acoustic testing to better mimic Free field (acoustics) responses. Each correction used should be provided with uncertainties, that need to be accounted for in the testing laboratory final Measurement uncertainty budget. This makes it unlikely that a sound level meter designed to the older 60651 and 60804 standards will meet the requirements of IEC 61672 : 2013. These 'withdrawn' standards should no longer be used, especially for any official purchasing requirements, as they have significantly poorer accuracy requirements than IEC 61672.
Military standards
- MIL-S-1474 This standard establishes acoustical noise limits and prescribes testing requirements and measurement techniques for determining conformance to the noise limits specified herein. This standard applies to the acquisition and product improvement of all designed or purchased (non-developmental items) systems, subsystems, equipment, and facilities that emit acoustic noise. This standard is intended to address noise levels emitted during the full range of typical operational conditions.
- TOP-1-2-608A This Test Operations Procedure (TOP) describes procedures for measuring the sound levels transmitted through air of developmental and production materiel as a means of evaluating personnel safety, speech intelligibility, security from acoustic detection and recognition, and community annoyance. It covers tests for steady-state noise from military vehicles and general equipment, and impulse noise from weapon systems and explosive-ordnance materiel.
Organizations
- The United Kingdom professional body for acoustics
- The International Institute for Noise control
- The home page of the IEC standards body
Pattern approval and Periodic Testing
One of the more difficult decisions in selecting a sound level meter is "How do you know if it complies with its claimed standard?" This is a difficult question and IEC 61672 part 2 tries to answer this by the concept of "pattern approval". A manufacturer has to supply instruments to a national laboratory which tests one of them and if it meets its claims issue a formal Pattern Approval certificate. In Europe, the most common approval is often considered to be that from the PTB in Germany (Physikalisch-Technische Bundesanstalt). If a manufacturer cannot show at least one model in his range that has such approval, it is reasonable to be wary, but the cost of this approval militates against any manufacturer having all his range approved. Inexpensive sound level meters (under $200) are unlikely to have a Pattern Approval and may produce incorrect measurement results.
Even the most accurate approved sound level meter must be regularly checked for sensitivity--what most people loosely call 'calibration'. The procedures for periodic testing are defined within IEC61672.3-2013. To ensure accuracy in periodic testing, procedures should be carried out by a facility that can produce results traceable to International Laboratory Accreditation Cooperation, or other local International Laboratory Accreditation Cooperation signatories.
For a simple single level and frequency check, units consisting of a computer controlled generator with additional sensors to correct for humidity, temperature, battery voltage and static pressure can be used. The output of the generator is fed to a transducer in a half-inch cavity into which the sound level meter microphone is inserted. The acoustic level generated is 94 dB which is 1 pascal and is at a frequency of 1 kHz where all the frequency weightings have the same sensitivity.
For a complete sound level meter check, periodic testing outlined in IEC61672.3-2013 should be carried out. These tests excite the sound level meter across the entire frequency and dynamic range ensuring compliance with expected design goals defined in IEC61672.1-2013.
ANSI/IEC: the Atlantic divide
Sound level meters are also divided into two types in "the Atlantic divide". Sound level meters meeting the USA American National Standards Institute (ANSI) specifications cannot usually meet the corresponding International Electrotechnical Commission (IEC) specifications at the same time, as the ANSI standard describes instruments that are calibrated to a randomly incident wave, i.e. a diffuse sound field, while internationally meters are calibrated to a free field wave, that is sound coming from a single direction. Further, USA dosimeters have an exchange rate of level against time where every 5 dB increase in level halves the permitted exposure time; whereas in the rest of the world a 3 dB increase in level halves the permitted exposure time. The 3 dB doubling method is called the "equal energy" rule and there is no possible way of converting data taken under one rule to be used under the other. Despite these differences, many developing countries refer to both USA and international specifications within one instrument in their national regulations. Because of this, many commercial PSEM have dual channels with 3 and 5 dB doubling, some even having 4 dB for the U.S. Air Force.
Other applications
Noise monitoring stations
Some applications require the ability to monitor noise continuously on a permanent or semi-permanent basis. Some manufacturers offer permanent and semi-permanent noise monitoring stations for this purpose. Such monitoring stations are typically based on a sound level meter at the heart and some added capabilities such as remote communication, GPS, and weather stations. These can often also be powered using solar power. Applications for such monitoring stations include airport noise, construction noise, mining noise, traffic noise, rail noise, community noise, wind farm noise, industrial noise, etc.
Modern monitoring stations can also offer remote communication capabilities using cellular modems, WiFi networks or direct LAN wires. Such devices allow for real-time alerts and notifications via email and text messages upon exceeding a certain dB level. Systems can also remotely email reports on a daily, weekly or monthly basis. Real-time data publication is often also desired, which can be achieved by pushing data to a website.
Smartphone applications
The ubiquity of smartphones, their constant network connectivity, the built-in geographic information system functionality and user-interactivity features present a great opportunity to revolutionize the way we look at noise, its measurement, and its effects on hearing and overall health. The ability to acquire and display real-time noise exposure data raises people's awareness about their work (and off-work) environment and allows them to make informed decisions about hearing hazards and overall well-being. NIOSH conducted a pilot study to select and characterize the functionality and accuracy of smartphone sound measurement applications (apps) as an initial step in a broader effort to determine whether these apps can be relied on to conduct participatory noise monitoring studies in the workplace. However, none of these smartphone applications, as yet, are accurate enough to be used for legally required measurements, but they give a reasonable " guesstimate".
Building acoustics, Sound insulation and Reverberation time
Some advanced sound level meters can also include reverberation time (RT60) measurement capabilities. Measurements can be done using the Integrated Impulse Response or Interrupted Noise Methods. Such sound level meters should comply with latest ISO 3382-2 and ASTM E2235-04 measurement standards. Also required for measuring the acoustics in buildings is a signal generator that provides pink or white noise through an amplifier and omnidirectional speakers. Such measurements are also used for calculation of wall/partition sound insulation.
See also
- Equal-loudness contour
- ITU-R 468 noise weighting
- Audio quality measurement
- Fletcher-Munson curves
- Sound pressure
- Clap-o-meter
General:
- Noise regulation
- Health effects from noise
References
- Komorn A. & Luquet P. Methode de description objective d'un environnement acoustique LNE report 1979
- Wallis A. D. From Mahogany to Computers Proceedings Euronoise, London. Plenary Paper. Sept 1992.
- Beranek, Leo L, Acoustics (1993) Acoustical Society of America. ISBN 0-88318-494-X
- Krug R. W Dosimeter standards, Europe & America, what difference does it make? Proc AIHCE 1993.
